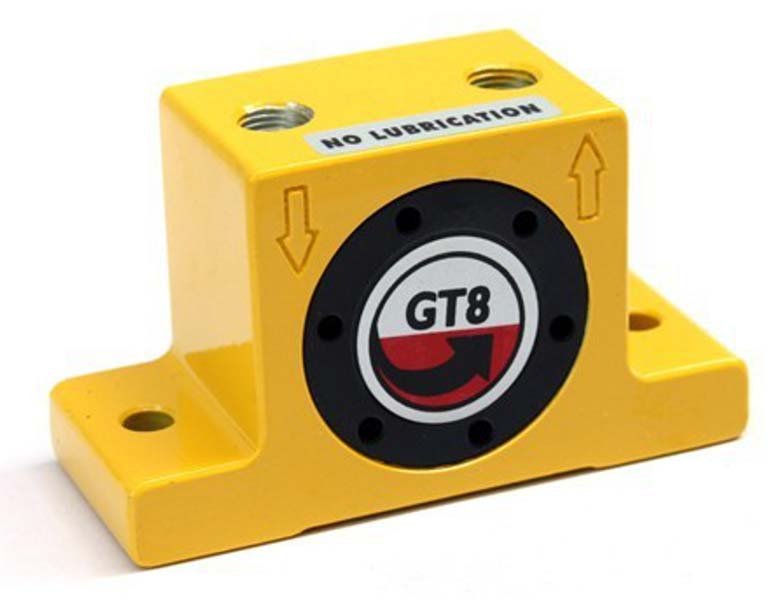

GT series Pneumatic Turbine Vibrator

Fearture:
No lubrication only clean air is required
Maximum temperature 120 celsius
Noise level range 60 ~75 dBA,very quiet
This series combines high-speed processing & eccentric torque to make a strong vibration force.
The body is made from an extruded stove enamelled aluminium section and the hard coated end plates enables the vibrators to be used in the food and pharmaceutical industries.
The GT series turbine vibrators conform to current international noise regulations under factory test conditions.

Description

Application:

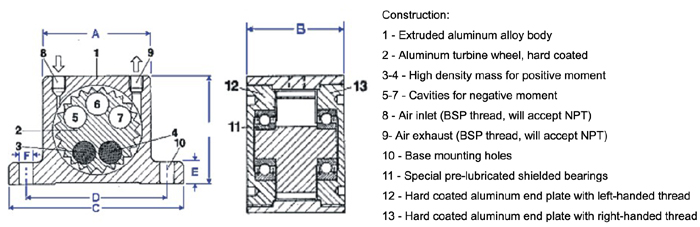

GT series vibration is produced by the central force of the positive and negative unbalanced moments in the rotor
The rotor is supported on two heavy duty, prelubricated, matched shielded ball bearings. A special long life grease ensures a long working life.
The inner and outer raceways of the bearings are designed so that the bearings can be easily replaced using only a pin-wrench.
The endplates are fitted with right- and left-hand threads and are self-locking.
