Float Drain Trap

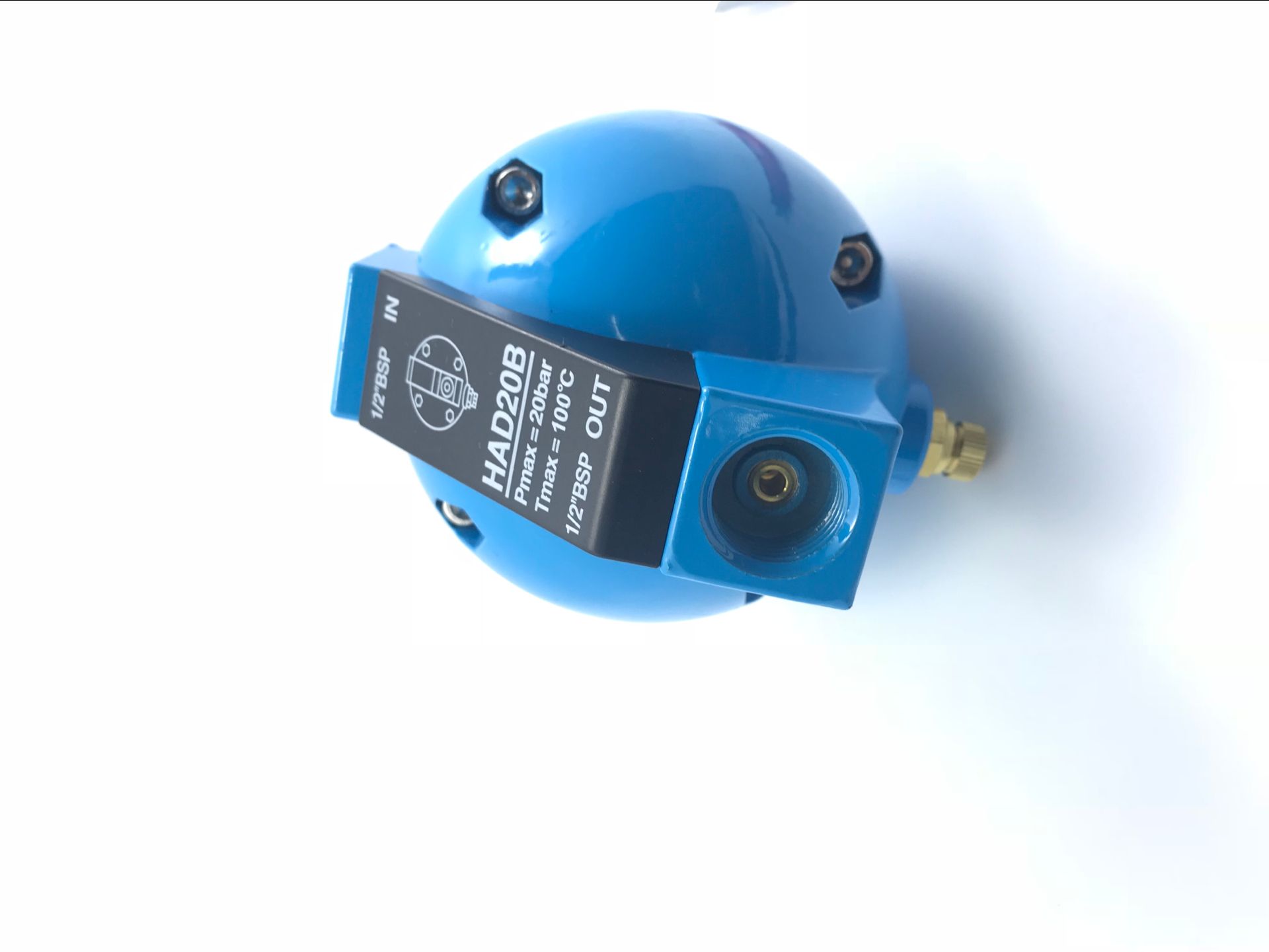

The AOK20B/HAD20B level controlled drain is designed to remove condensate from compressed air systems on demand. The water level within the housing operates the drain valve float assembly.

It is ideally suited to apply on applications where power is not available or wanted . The operation is automatic and there is no compressed air lost during the condensate discharge cycle.

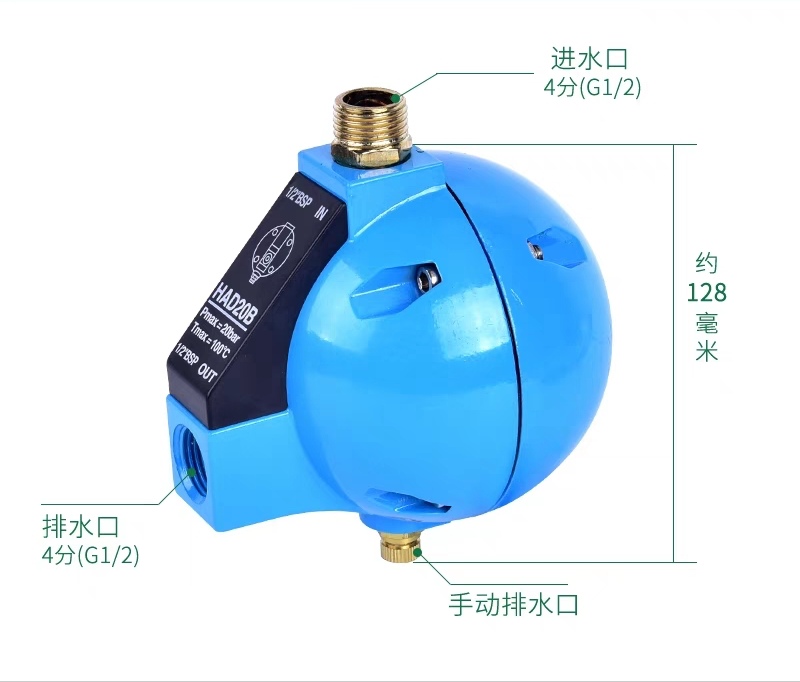

The AOK20B/HAD20B will save you compressed air & electricity costs;½   bsp Female top entry, with ½ side discharge, Supplied with ½ nipple for attachment to your equipment.

Key features

• Zero air loss during the condensate discharge
• No electricity required to operate the drain
• Medium pressure 20 bar
• Pneumatic operated valve - not diaphragm type
• Large drain orifice
• Ball valve strainer  optional extra  on request
• Manuel drain valve
• Suitable for all types of compressed air
